The main types of glass for windows describe different parts of the same product. Annealed, tempered and laminated describe construction or treatment. Double-pane and triple-pane describe the insulated unit. Low-E describes a coating. Frosted, patterned and tinted describe appearance or light control.

You do not have to choose only one label. A window can have a double-pane insulated unit, a low-E coating and a laminated pane. Start with what the opening needs to do, then combine the appropriate features in a specification.

ConstructionAnnealed · tempered · laminatedHow the glass is made and behaves when broken.
Insulated unitDouble-pane · triple-paneThe panes and sealed cavities in the assembly.
CoatingLow-EHow the specified surface controls radiant heat transfer.
Finish or treatmentFrosted · patterned · tintedHow light and the view through the glass are affected.

One window can combine several features. For example, a specified unit could include:

Double-pane IGULow-E coatingLaminated pane

An example of compatible categories, not a recommendation for a particular opening.

Annealed, tempered and laminated: start with safety

Annealed

Annealed glass is ordinary glass without a strengthening heat treatment. It can break into long sharp shards. It is appropriate for some applications, but it is not interchangeable with required safety glazing.

Tempered

Tempered glass is heat-treated to alter its strength and breakage behaviour. It usually breaks into small fragments, which can still cause injury. The panel’s final size, holes and notches must be established before tempering because it cannot be cut or drilled afterward.

Laminated

Laminated glass bonds sheets of glass to an interlayer that helps retain broken fragments. It can also be specified for particular acoustic or security goals. The word laminated does not mean unbreakable, and the supporting frame remains part of its performance.

For a door, shower, guard or other impact-sensitive opening, identify the required safety construction before comparing finishes or reducing the budget. Ordinary tint or decorative film should not be treated as an automatic substitute. See laminated versus tempered glass for a closer comparison of breakage behaviour and application choices.

Double-pane glass and triple-pane glass

An insulated glass unit, often called an IGU, contains two or more panes separated by sealed spaces. A spacer maintains the gap, and the unit’s edge-seal system helps keep the cavity dry. Some units use a gas fill as part of the thermal specification.

Double-pane glass

Two panes / one cavityA simplified edge cross-section showing glass panes separated by sealed cavities, with spacers and an edge-seal system at the bottom. Not to scale.SealedcavityGlass panesSpacerEdge-seal system
Two panes and one sealed cavity.

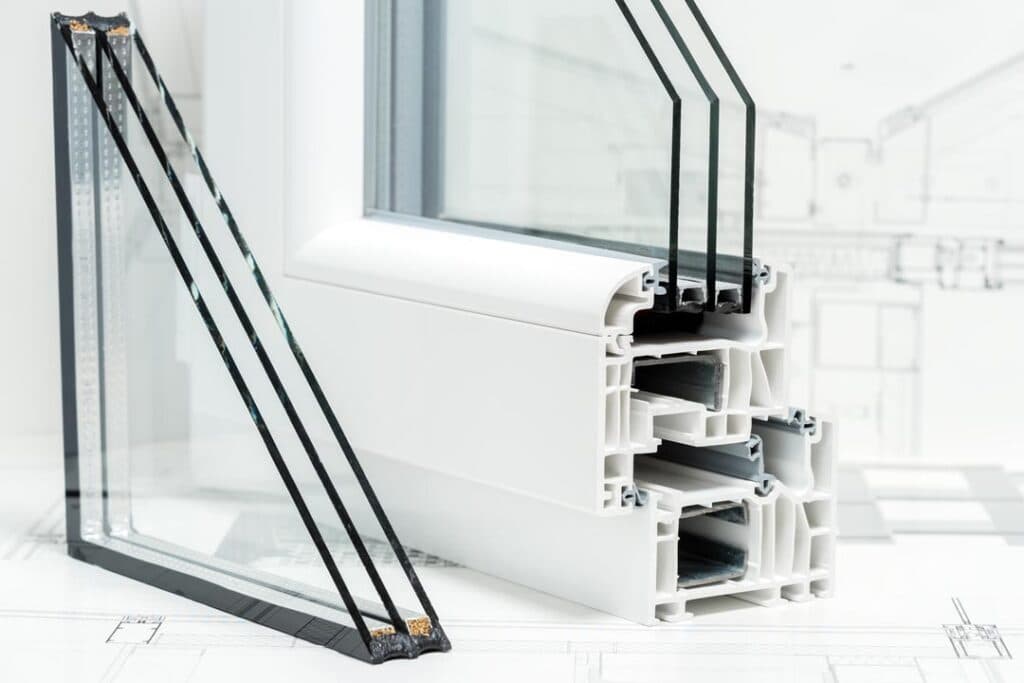

Triple-pane glass

Three panes / two cavitiesA simplified edge cross-section showing glass panes separated by sealed cavities, with spacers and an edge-seal system at the bottom. Not to scale.SealedcavitySealedcavityGlass panesSpacerEdge-seal system
Three panes and two sealed cavities.

Simplified edge sections, not to scale. Coatings, frame and detailed seal construction are omitted. These drawings do not specify a replacement unit.

Double-pane glass has two panes and one cavity. Triple-pane glass adds another pane and cavity. That extra layer can improve thermal performance in a suitable assembly, but pane count alone is not a complete comparison. Coatings, spacers, frame construction and air leakage also affect the window you live with.

For a Canadian home, compare the rated products rather than assume every triple-pane option beats every double-pane option in every respect. A heavier or deeper unit may not suit an older sash. Additional panes also do not guarantee the best traffic-noise result; acoustic performance needs its own assessment.

Fog that remains between panes after the accessible surfaces are cleaned can indicate a failed sealed unit. It does not automatically mean the entire window frame must be replaced. The glass-only versus full-window replacement guide explains the difference in scope.

Low-E window glass: manage heat transfer

A low-emissivity coating reduces radiant heat transfer. Different low-E products balance heat retention, incoming solar heat and visible light differently, so the name does not identify one uniform tint or level of performance.

Use these ratings together when comparing options:

U-factor

Lower values indicate less heat transfer through the rated product. Compare whole-window values with whole-window values, not a glass-only figure against a complete assembly.

Solar heat-gain coefficient

The share of solar heat admitted through the glazing. Toronto homes may need to balance summer overheating against useful winter sunlight, depending on orientation and shade.

Visible-light transmission

The amount of daylight passing through the glazing. It helps compare how bright a room may feel, alongside glass area, shading and finishes.

View a real sample if colour or reflectance matters, especially when replacing only one pane beside existing windows. A coating can look different against white walls or in evening lighting. Our low-E upgrade guide covers how to weigh that appearance against comfort and cost.

For Canadian rating definitions and upgrade options, see Natural Resources Canada’s window-upgrade guidance.

Privacy glass: decide what should remain visible

Frosted, reeded, rain-pattern and other obscuring finishes can admit light while interrupting a clear view. They work well when daylight matters more than seeing through the opening, such as some bathroom windows or interior screens.

Check a sample with a person or object close behind it and with the brighter light on each side. “Obscure” is not a promise that no silhouette will ever be visible. The finish must still be paired with the right safety construction for the location.

Tinted glass changes colour and light transmission, but darker glass is not dependable nighttime privacy. When a room is illuminated after dark, people outside may still be able to see in. Blinds, curtains or a suitable obscuring finish may be needed.

Applied film is a separate option for compatible existing glass. It does not turn every pane into an approved safety product or repair a failed IGU.

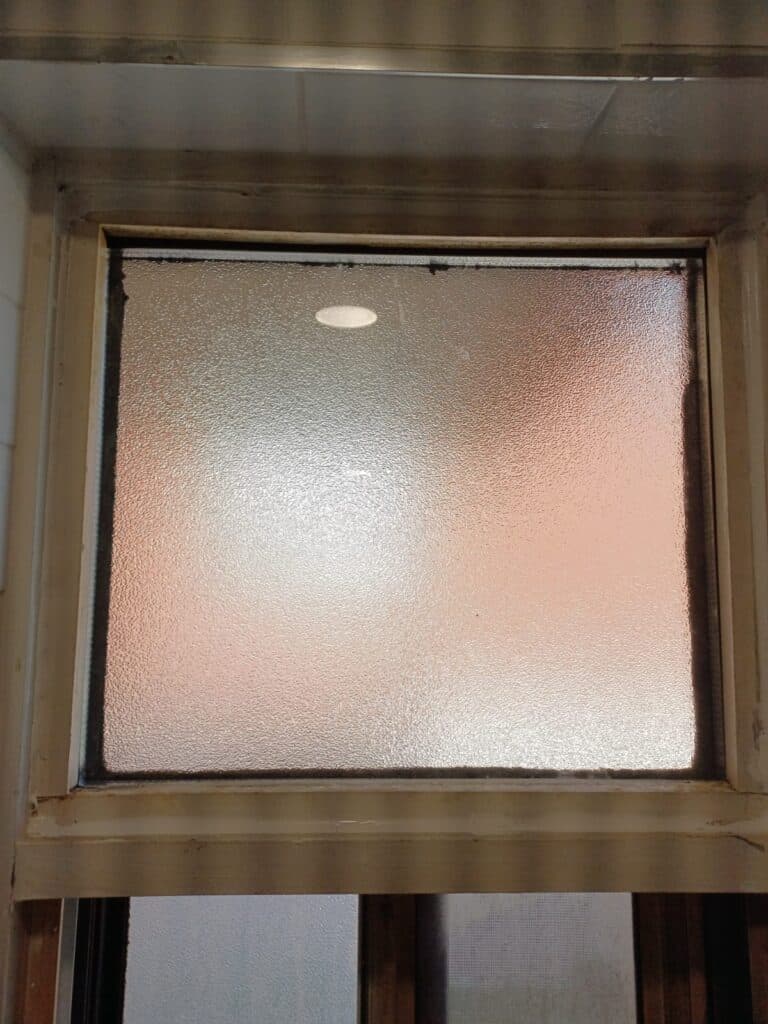

Textured translucent glass in a painted window frame, with blurred light visible behind the pane.
Existing site photograph showing an obscuring texture. Appearance alone does not identify the glass’s safety construction.

Acoustic glass: specify the whole noise-control system

Acoustic glass may use a particular laminate, pane combination or spacing to improve sound control. For a bedroom beside a busy Toronto street, ask for test data for the proposed window rather than a generic “soundproof” label.

The frame, opening seals and surrounding wall paths matter too. If air leaks around the window or a nearby vent transmits traffic noise, changing the pane alone may disappoint. Confirm that the proposed solution preserves the window’s intended opening, ventilation and any required escape function.

Turn your room’s problem into a specification

A cold room calls for an assessment of heat loss and drafts. That may lead to better insulated glazing, repairs to weatherstripping or wider work around the opening. A hot west-facing room calls for a solar-gain and shading comparison. A bathroom privacy issue calls for an obscurity sample. A broken door pane calls first for the correct safety construction and dimensions.

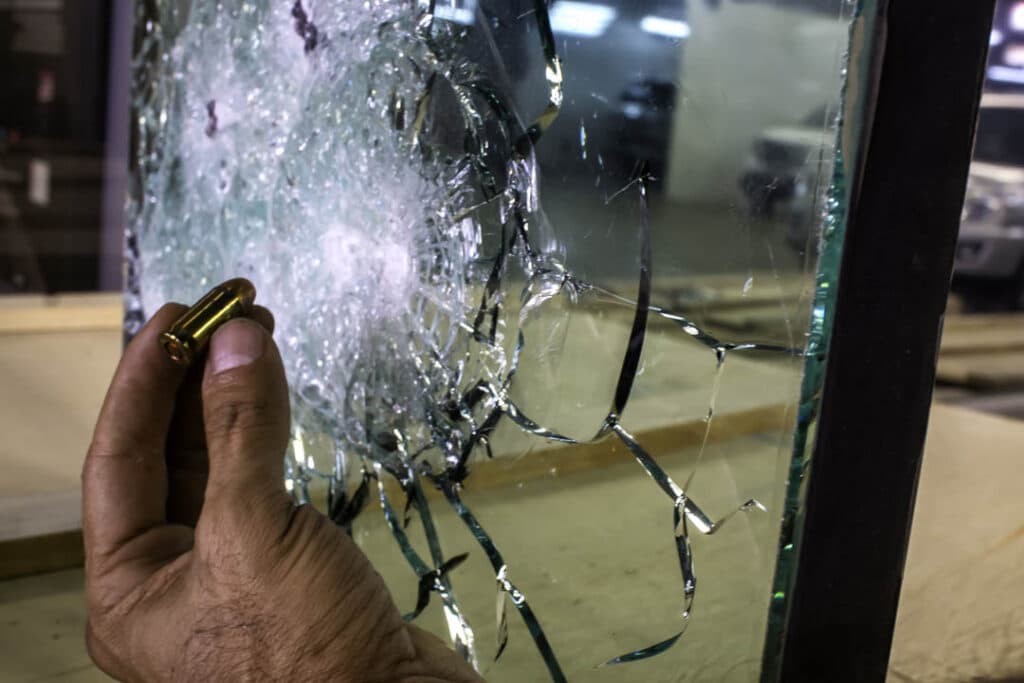

These are different decisions, even when the finished glass looks similar. Keep specialist applications separate: fire-rated openings, appliances and ballistic protection require their own tested or manufacturer-specified assemblies. Ordinary architectural tempered glass is not a substitute based on appearance alone.

What do you want to address?

Select every concern that applies. The checklist adds questions to discuss; it does not choose or approve a glass product.

Your discussion points

Select one or more concerns above to build a checklist for your conversation.

Address damage before choosing upgrades

Keep people away from unstable or broken glass. Arrange assessment of the panel and its supports; do not remove it to measure or test it. Other selected goals are future discussion points, not approval to keep using damaged glass.

Compare heat loss and air leakage

Ask for whole-window U-factor and a check of weatherstripping, sash fit and the opening. A better glass unit does not repair every draft.

Compare solar gain and shading

Record the exposure and time of overheating. Compare SHGC, daylight and practical shading while considering useful winter sunlight.

Test the intended privacy finish

View an obscurity sample with a person close behind it and brighter light on each side. Confirm the safety construction separately.

Request acoustic assembly data

Identify the noise source and ask for test evidence for the proposed window. Include frame seals, vents and surrounding sound paths in the assessment.

Establish whether the sealed unit has failed

Describe which accessible surfaces were cleaned and when the fog appears. Ask whether compatible glass-only replacement can retain the existing sash and frame.

For every selection: confirm the required safety construction, sash and frame compatibility, final dimensions and installation scope. More than one concern may require more than one kind of work.

Selections are temporary. Nothing is saved or sent. Without conditional-style support, every discussion point remains visible.

What to send when asking for replacement glass

Send photographs of the opening, surrounding frame, damage and any readable label or corner mark. Include the address, room, approximate dimensions and the problem you want solved. Existing measurements help with an initial discussion; the fabricator still needs verified final dimensions and specification before making the glass.

  • Show the opening: a full-window photograph and the surrounding frame.
  • Show the detail: the symptom and any readable product marking, photographed from a safe position.
  • Describe the result: comfort, privacy, noise control or replacement of failed glass.

Questions about combining glass features

Can one window be low-E, double-pane and laminated?

Yes. These labels describe different features: the insulated unit, a coating and a pane’s construction. The combination still needs to suit the opening and the required performance.

Is triple-pane glass always better than double-pane?

No. Compare the rated products, sash compatibility and the problem you want to solve. Pane count alone does not establish the best thermal, daylight or acoustic result.

Does privacy glass also count as safety glass?

An obscuring finish does not establish safety performance. Specify the required safety construction separately for the location.

Does between-pane fog mean I need a complete new window?

Not necessarily. A failed insulated glass unit may be replaced while retaining a suitable sash and frame. The window’s condition and compatible replacement options need assessment.

Ask for the complete glass specification

Glass Repair Canada provides residential window glass replacement in Toronto and the GTA. If the frame and sash remain suitable, a new pane or sealed unit may be enough. Ask for the glass build-up, coating, finish, safety specification and installation scope in writing so you know which features you are buying.
